Technical DatasheetREV: 2024.12.v1
Turkey's First Spectrophotometer

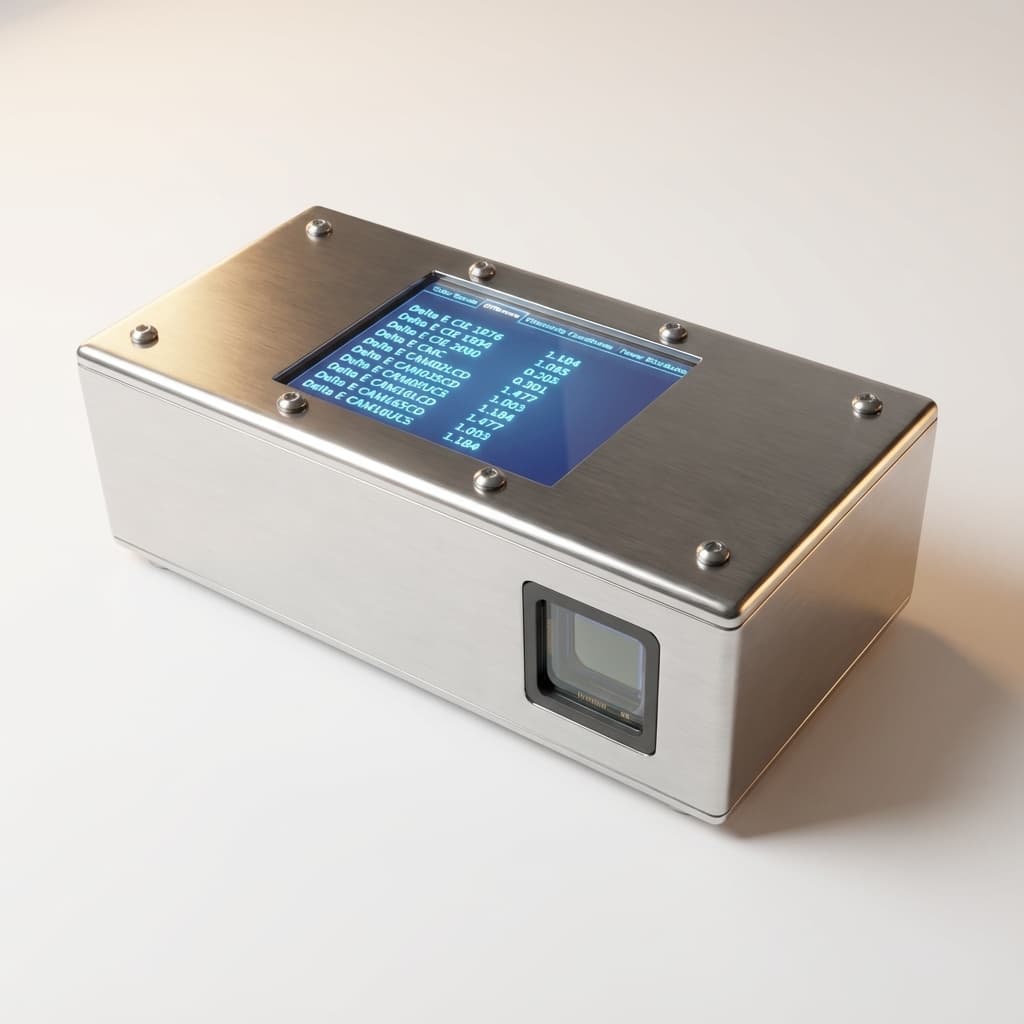

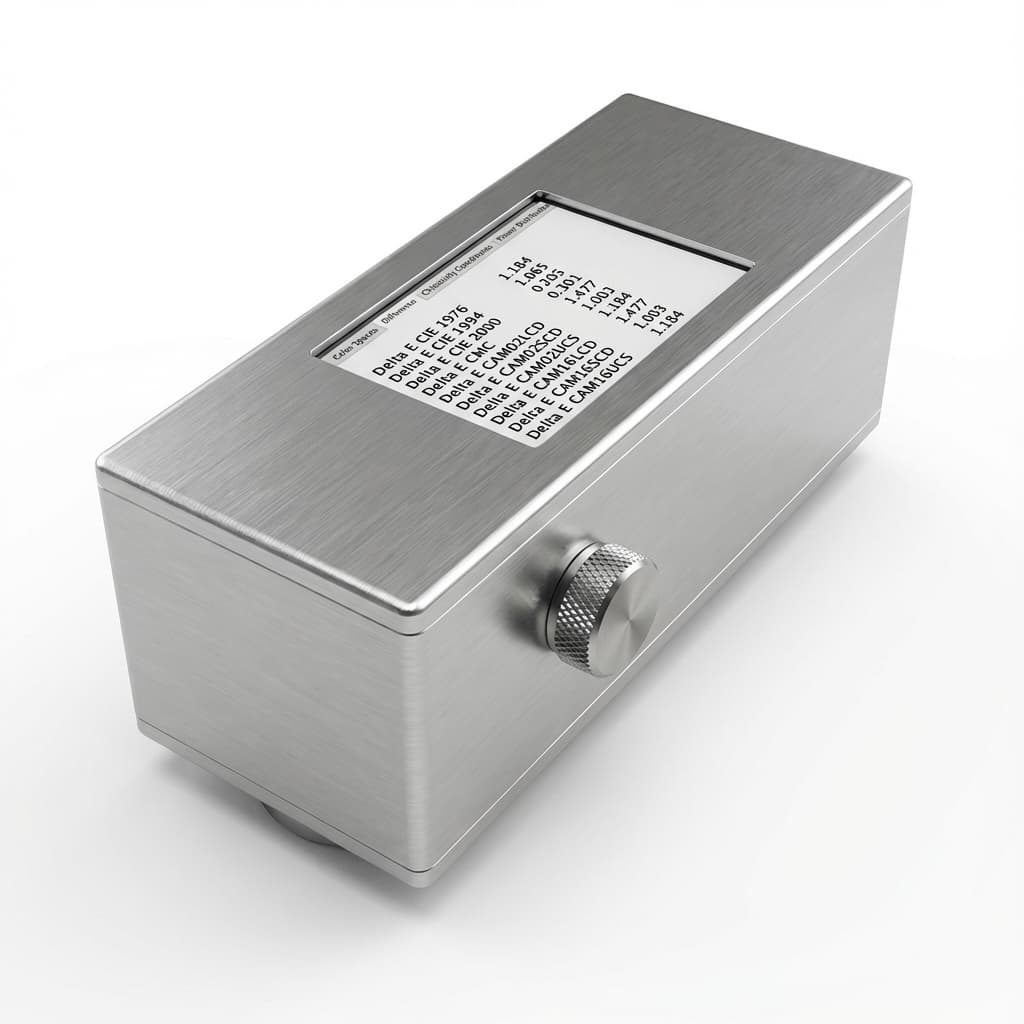

Perfect Sense Mobil
A high-precision industrial-grade handheld spectrometer. PSM provides application-specific insights such as color, light intensity, color difference, whiteness index, and yellowness index. It is the definitive solution for quality control across textiles, water analysis, and display calibration.
CE Certified
ISO 9001:2015
Industry 4.0 Ready
Technical Specifications
| Parameter | Performance Data |
|---|---|
| Spectral Range | 400 nm - 700 nm |
| Spectral Interval | 10 nm / 20 nm selectable |
| Measuring Aperture | Φ 8 mm / Φ 4 mm switchable |
| Repeatability | ΔE*ab ≤ 0.08 |
| Inter-Instrument Agreement | ΔE*ab ≤ 0.2 |
| Battery Life | 8000+ Measurements per Charge |
MAPTONE TECHNOLOGIES - DATA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
Key System Features
20nm Spectral Resolution
High-resolution spectral power distribution analysis.
Global Standards
Compliant with CIE 1931/DIN 5033 norms with a D65 light source.
Mobile Durability
Stainless steel chassis with up to 5 hours of continuous operation per charge.
Industrial Applications
Textile Dyeing & Quality Control
Plastic Injection Color Verification
Agricultural Product Ripeness Analysis
Surface Coating & Paint Consistency
Engineering Excellence
- Precision Diffuse Illumination (d/8°)
- Automatic White Calibration
- Bluetooth & USB Connectivity
- Direct Color Code Measurement (Lab, RGB, HEX)
