Technical DatasheetREV: 2024.12.v1

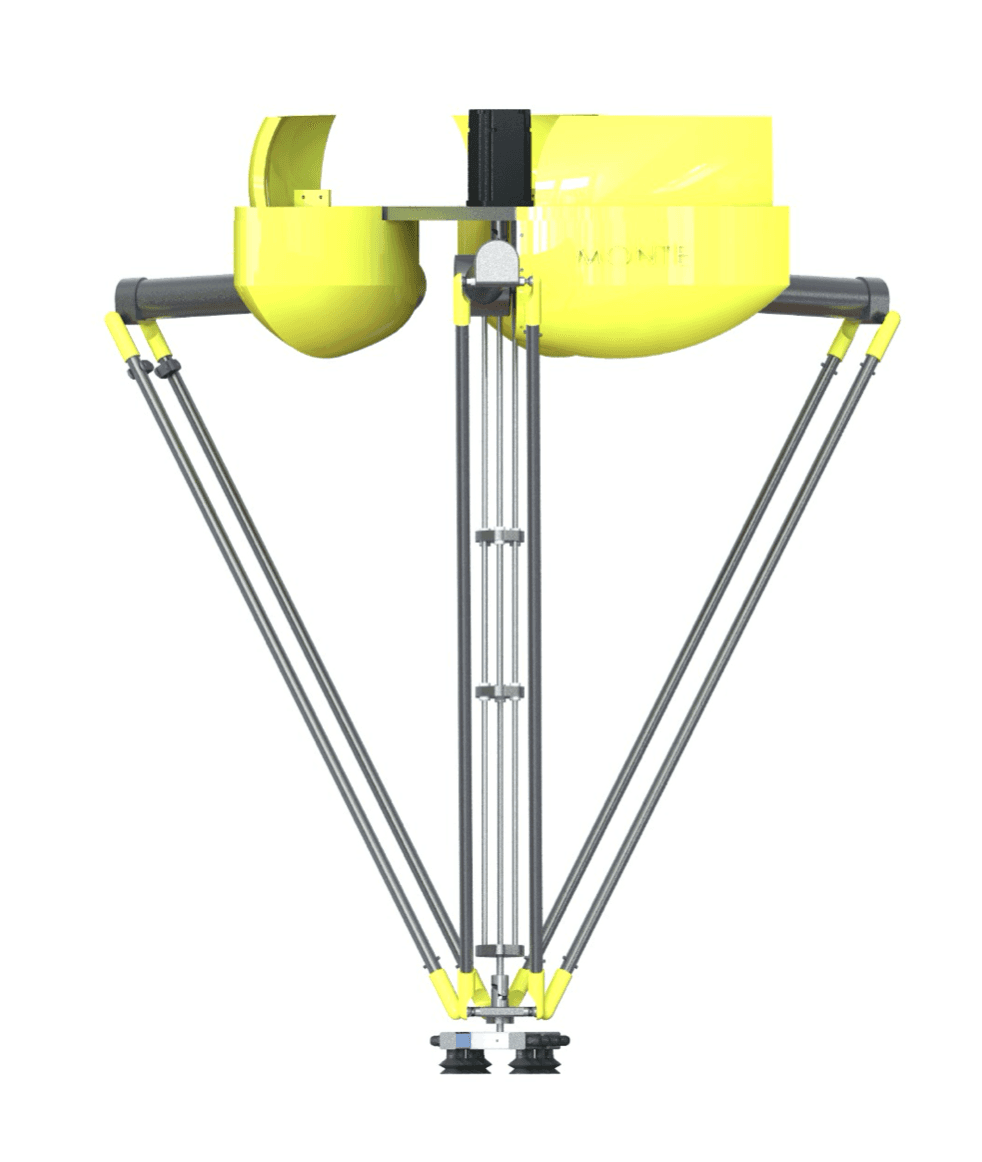

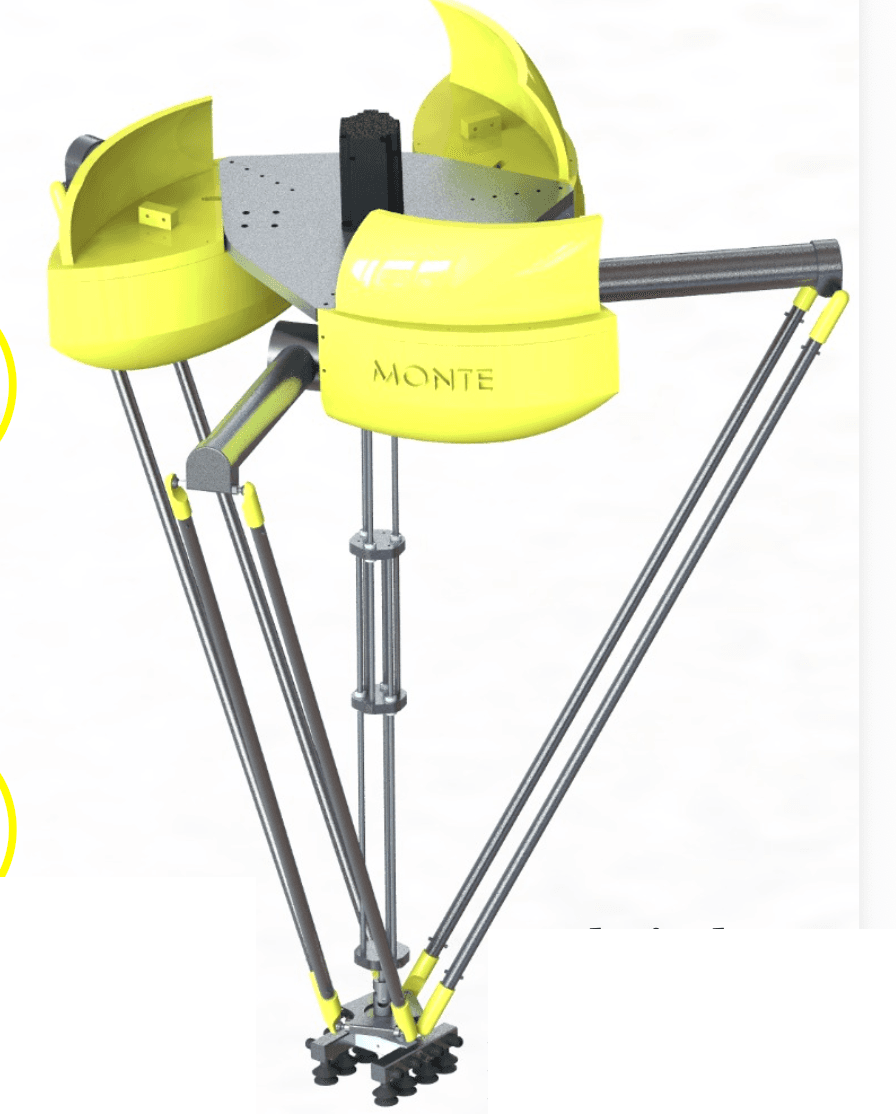

Advanced Delta Robot for Industrial Automation
Monte
A high-speed, high-precision Delta robot designed for sterile and demanding environments. Ideal for rapid pick-and-place operations in Pharmaceutical and Food Packaging industries, ensuring maximum throughput with surgical accuracy.
CE Certified
ISO 9001:2015
Industry 4.0 Ready
Technical Specifications
| Parameter | Performance Data |
|---|---|
| Payload | 3 kg (Nominal) / 6 kg (Max) |
| Working Range | 800 mm - 1200 mm Diameter |
| Cycle Time | up to 200 picks/min |
| Repeatability | ± 0.05 mm |
| Degrees of Freedom | 4 Axes |
| Protection Glass | IP67 / IP69K (Optional) |
MAPTONE TECHNOLOGIES - DATA SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
Key System Features
Micro-Precision Timing
Optimized for high-cycle industrial lines.
Sterile-Grade Design
Stainless steel and easy-to-clean materials for sanitary compliance.
Dynamic Integration
Vision-guided pick-and-place with seamless conveyor tracking.
Industrial Applications
High-speed Pick & Place for Food Industry
Sterile Packaging in Pharmaceutical Lines

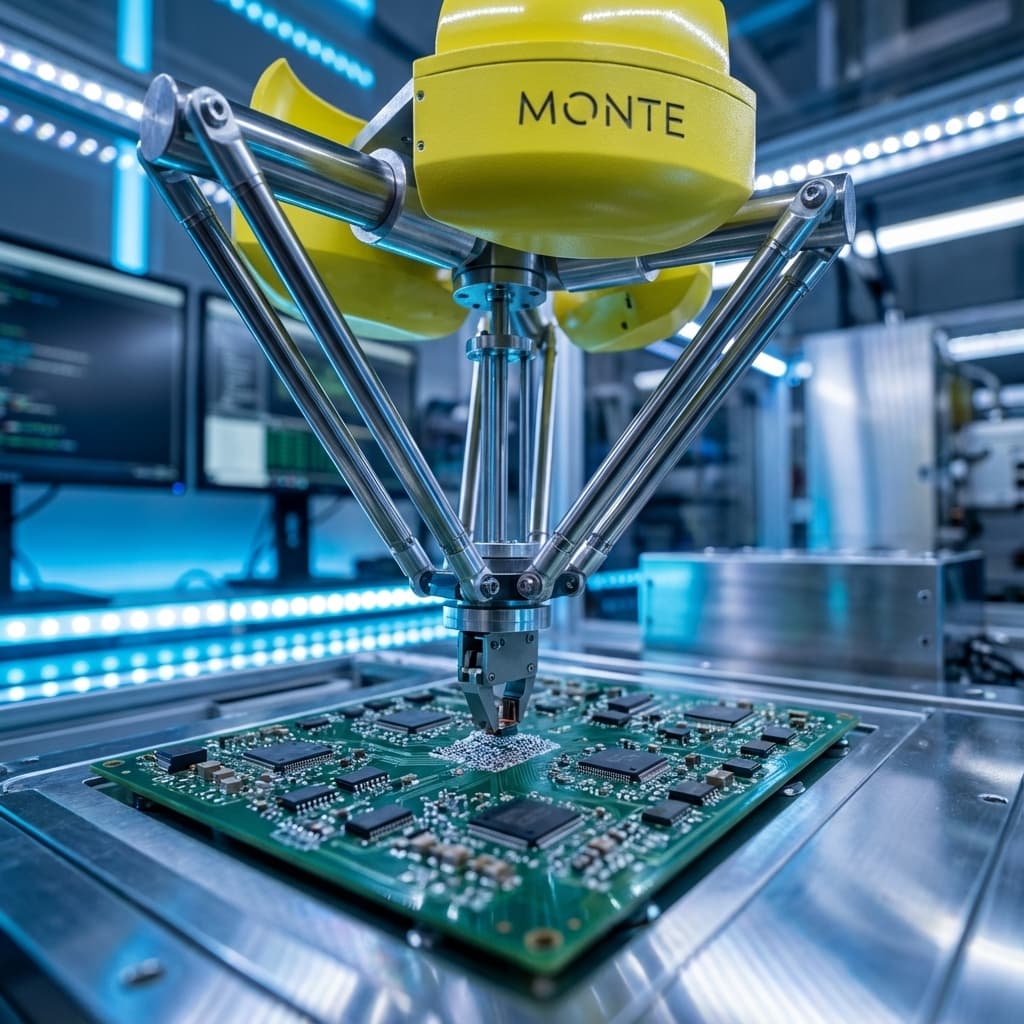

Precision Sorting for Electronics Assembly
Secondary Packaging for Consumer Goods
Engineering Excellence
- High-speed Kinematic Structure
- Pharmaceutical Grade Stainless Steel (316L)
- Integrated Intelligent Vision System
- Low Maintenance Drive Train
Resources
Access complete dimensional drawings, integration guides, and software documentation.
